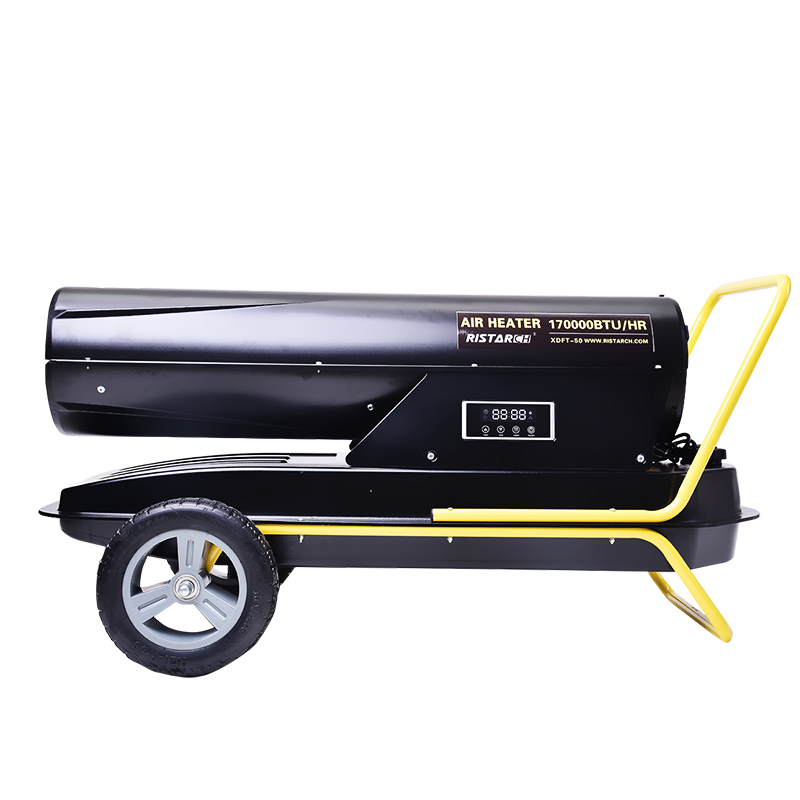

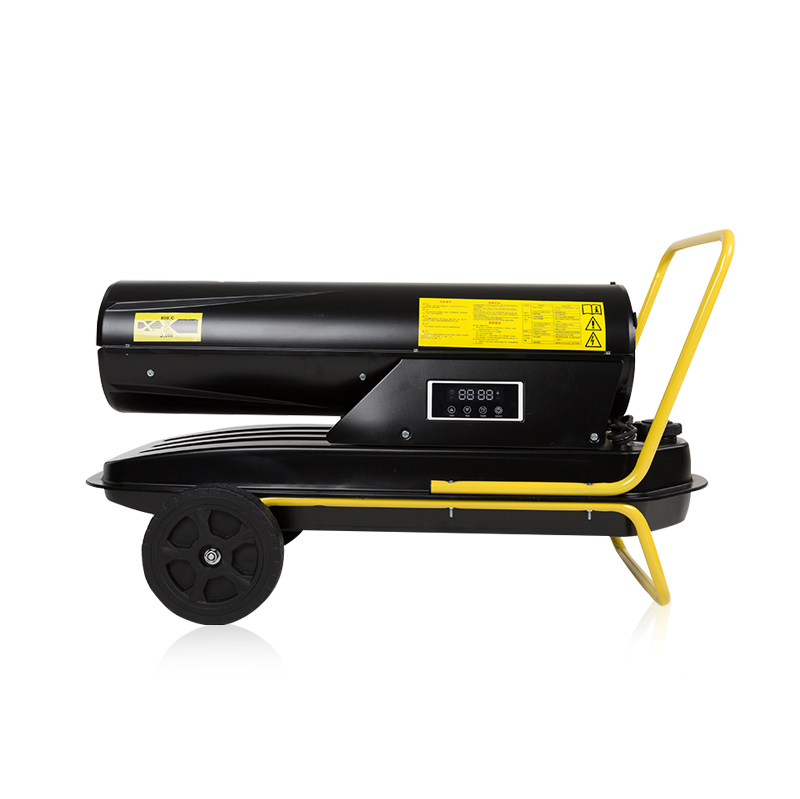

Diesel/Koresene Forced Air Heaters

Short Description:

1. Function on diesel oil or kerosene2. Streamlined and tough design,movable tro


Product Details

Product Tags

1. Function on diesel oil or kerosene
2. Streamlined and tough design,movable trolley

3. With flame sensor
4. Stainless steel combustion chamber with fan cooling
5. Durable external powder coating
6. Fixed Oil display,If no oil , heater will cut off the power
7. Low pressure atomization,combustion completely
8. Cut-off protection,re-plugged in will not work automatically
9. Fully automatic operation controlled by PCB with room temperature stat
10.Waterproof grade IPX4
11.Low temperature starting at -40℃

12.Widely used range,such as poultry farm,greenhouse,barn,warehouses,industrial mining, factories ,etc.


Diesel  Heat Gun Specifications
Model No.
XDFT-20
XDFT-30
XDFT-50
XDFT-60
Power
20KW
30KW
50KW
60KW
Voltage
220-240V
220-240V
220-240V
220-240V
Frequency
50Hz
50Hz
50Hz
50Hz
Heat Output(Kcal/H)
17200
25800
43000
60200
Heat Output(Btu/H)
69000
105000
170600
238840
Motor Power
230W
230W
340W
340W
Air Flow(M3/H)
595
735
1100
1300
Heating Area(M2)
100-200
200-300
300-400
500-600
Fuel Consumption
1.7Kg/H
2.5Kg/H
4.7Kg/H
4.9Kg/H
Tank Capacity
19L
38L
56L
56L
Product Size(MM)
848*352*402
973*397*375
1149*415*439
1269*415*439
Package Size(MM)
900*400*440
1025*435*435
1200*478*530
1320*478*530
Net Weight(KGS)
17
22.3
29
31
Gross Weight(KGS)
20
24.5
32
34
